Standard Drum Online Price Calculator

Please login / register to proceed further in your drum design and quote

* We will manufacture & despatch in 4/5 days, from when the order is confirmed.

Password

STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

Step1

Let's get started

Our Standard Drum is manufactured and dispatched within 4-5 working days.

A Technical Drawing must be uploaded , for our Production Operatives to manufacture from.

Please fill in all your Standard Drum Specifications to place your order.

Project Name / Drum Code*

Type of Drum*

Drive Drum image-icon

Tail Drum

Pipe Outer Diameter O/D (mm)*

168 mm

219 mm

273 mm

323 mm

406 mm

Pipe Thickness (mm)*

Pipe / Shell Length(mm)*

500 500mm 1500mm

*All fields are required

Step2

Enter Drum Specifications

Our Standard Drum is manufactured and dispatched within 4-5 working days.

A Technical Drawing must be uploaded , for our Production Operatives to manufacture from.

Please fill in all your Standard Drum Specifications to place your order

Center Shaft Outer Diameter O/D (mm)*

40 mm

50 mm

60 mm

70 mm

80 mm

90 mm

100 mm

110 mm

120 mm

KLAB - Keyless Locking Device Selection*

NOTE: All STANDARD drums will be manufactured with a KLAB - Keyless Locking Device.

The size of KLAB is pre-determined and automatically selected, dependent on the Outer Diameter of Shaft which has been chosen.

End Plates Thickness *

NOTE: Thickness of the End Plates & The Bore- Hole Diameter (which supports the KLAB), is pre-determined and automatically selected, dependent on the Outer Diameter of the Shaft which has been chosen.

Please choose Shaft Design option and input diameters and tolerances in the diagram below*

DRIVE DRUM with 1 x Turn-down on Shaft

Centre Shaft and Bearing Span are the same diameter. Drive Engagement Span has the smaller Diameter.

DRIVE DRUM with 2 x Turn-downs on Shaft Size

Centre Shaft, Bearing Span and Drive Engagement Span, are all different Diameter sizes.

DRIVE DRUM with Shaft Diameter Size - the same size all the way through from right to left side

Centre Shaft, Bearing Span and Drive Engagement Span, are all the same Diameter size.

TAIL DRUM with 1 x Turn-down on Shaft

Centre Shaft and Bearing Span are the same Diameter.

TAIL DRUM with Shaft Diameter Size - the same size all the way through from right to left side

Centre Shaft, Bearing Span, are all the same Diameter size.

NOTE: Below information must be inserted to determine overall shaft length & specification

1. Full shaft dimensions lengths

2. Diameters at different locations

3. Tolerances at different locations

mm 600 600mm 2500mm

mm mm mm mm mm mm mm mm

NOTE: A STANDARD Drum from SpeedyDrums - must have an overall Shaft length >600mm & <2500mm

Shell length and Shaft O/D are prefilled from your answers to questions Q5 and Q6.

Your Uploaded Online Price Calculator Technical Drawing must include Shaft Overall Length, Turn-down diameters & lengths for Bearings positioning & Keyway Gearbox engagement.

*All fields are required

Step 3

Enter Drum Specifications

Our Standard Drum is manufactured and dispatched within 4-5 working days.

A Technical Drawing must be uploaded , for our Production Operatives to manufacture from.

Please fill in all your Standard Drum Specifications to place your order

Type of Keyway*

NOTE: Select Open or Closed Keyway

OPEN KEYWAY - goes all the way to end of Shaft Open Keyway image-icon

CLOSED KEYWAY - does not go to end of Shaft Closed Keyway

NOTE: Standard Keyway is machined into the Shaft of Drive Drum we manufacture. Key Steel is also supplied and fitted.

It is important to ensure your Uploaded Technical Drawing Document, communicates, the Keyway Positioning on the shaft

Closed Distance*

Enter distance (in mm) between end of shaft and beginning of Keyway

5 5mm 60mm

Keyway Length(mm)*

30 30mm 250mm

Keyway Width & Depth

Width mm

Depth mm

NOTE: Keyway Width & Depth is pre-determined by British Standards scale Table and The Selected SHAFT Outer Diameter where Keyway is located

keyway Information

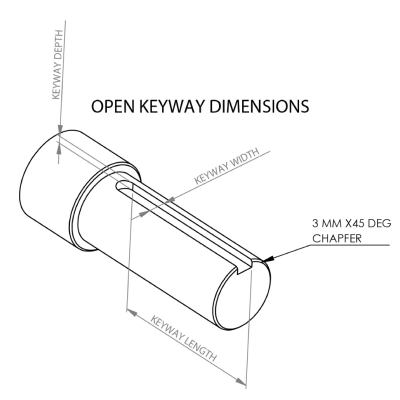

Open Keyway :

Rounded at Start - Square at end of Shaft

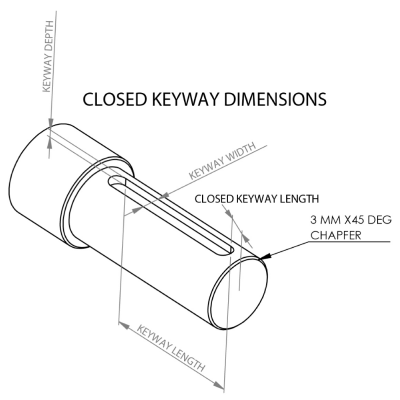

Closed Keyway :

Rounded at Start & Rounded at end of Shaft

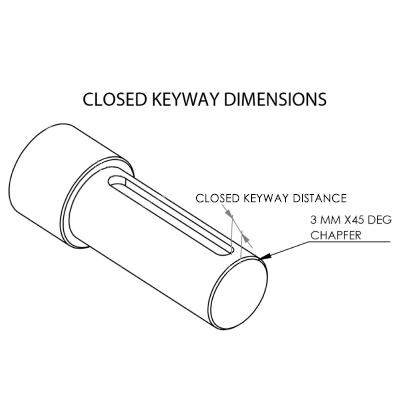

If your Keyway is CLOSED , you must enter the 'Closed Distance' as the distance between; End of Shaft - Beginning of Keyway

*All fields are required

Step 4

Enter Drum Specifications

Our Standard Drum is manufactured and dispatched within 4-5 working days.

A Technical Drawing must be uploaded , for our Production Operatives to manufacture from.

Please fill in all your Standard Drum Specifications to place your order

Drill & Tap of Shaft*

Required

Not Required

Drill & Tap - Left Side*

Metric Thread Diameter

NONE

M4 mm

M6 mm

M8 mm

M10 mm

M12 mm

M14 mm

M16 mm

M18 mm

M20 mm

Internal Thread Depth*

100 10mm 100mm

Drill & Tap - Right Side*

Metric Thread Diameter

NONE

M4 mm

M6 mm

M8 mm

M10 mm

M12 mm

M14 mm

M16 mm

M18 mm

M20 mm

Internal Thread Depth*

10 10mm 100mm

Lagging*

None(Unlagged)

Hot Vulcanised Rubber Lagging

Ceramic

Type of Lagging *

Lagging Depth

*All fields are required

Step 5

Enter Drum Specifications

Our Standard Drum is manufactured and dispatched within 4-5 working days.

A Technical Drawing must be uploaded , for our Production Operatives to manufacture from.

Please fill in all your Standard Drum Specifications to place your order

Standard Drum Quantity*

Additional Notes Related to your Standard Drum Manufacture

Please upload your technical diagram for this Standard Drum.

Choose / Select a Technical Drawing from your PC / electronic device to upload

If you do not have your own Technical Drawing to upload, you can Download the SpeedyDrums Technical Drawing by Clicking on the Button below.

This SpeedyDrums Technical Drawing contains the dimensions of the Drum you have just completed in the Drum Configurator.

Once you have uploaded the Technical Drawing of your choice, you can then proceed to view pricing.

Once you have downloaded the SpeedyDrums Technical Drawing - save it to your PC / electronic device and then upload the Drawing to the SpeedyDrums website by clicking on the Choose File button above.
